Linuxserver/swag running on br0 (macvlan) network Cannot reverse proxy

LSIO Discussion Container Support
1

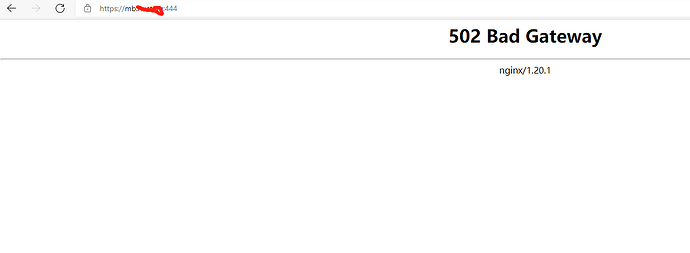

unraid,linuxserver/swag running on br0 (macvlan) network Cannot reverse proxy，Normal operation in the local area network, enter the external network address can not work, the display is: 502 Bad Gateway.If linuxserver/nginx is network type:custom:Bridge, it can run normally when connecting to the external network; if it runs in network type:custom:bro, what should I do? Expect a solution, thank you very much! ! !

Q4
Q41252×460 7.38 KB

details as follows：

  1. Create a network hyx through commands
    docker network create hyx
  2. The choice of reverse proxy software is linuxserver/swag network type:custom:hyx, which is used to proxy docker

3.Because another docker:linuxserver/nginx needs a fixed IP for internal and external network use, so the network is network type:custom:bro Fixed IP address:192.168.16.88,
The corresponding *.subdomain.conf file is:
server {
listen 443 ssl;
listen [::]:443 ssl;

server_name mb.xxxx.xxx;

include /config/nginx/ssl.conf;

client_max_body_size 0;


location / {
    include /config/nginx/proxy.conf;
    resolver 127.0.0.11 valid=30s;
    set $upstream_app 192.168.16.88;
    set $upstream_port 80;
    set $upstream_proto http;
    proxy_pass $upstream_proto://$upstream_app:$upstream_port;
}

}
